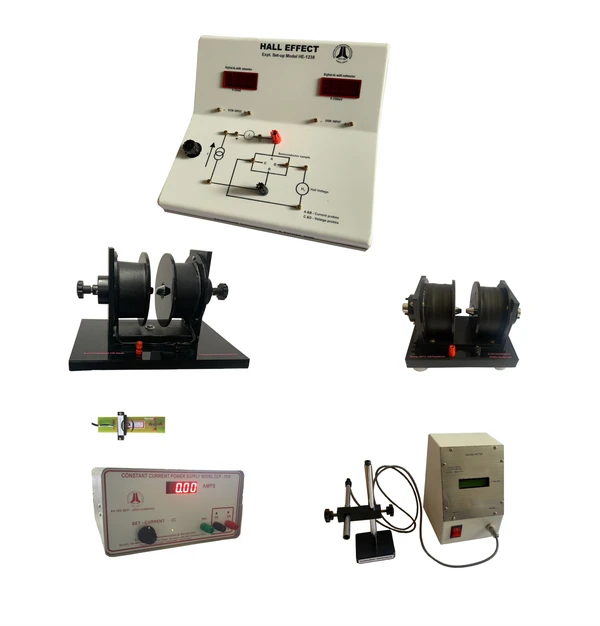

Hall effect apparatus - PG Model

Model: HE-201

Experiment(s):

Observe Hall effect in doped semiconductors and determination of charge density and velocity of charge carriers in the lattice

Specifications

1 . Hall effect kit

                    Consists of variable constant current power supply,
Built in DC digital milli-voltmeter and DC milli-ammeter,
Rated Input: 220 V/50 Hz or 110 V/60 Hz
cabinet made of acrylic,
short circuit protected


2 . Electro-magnet

                    HE-201: 100 mm dia magnet with user adjustable pole gap  from 1 mm till 20 mm,
capable of producing magnetic flux of upto 10k gauss at 10 mm pole gap


3 . Power supply

                    HE-201: Heavy duty power supply with variable constant current, provided with digital current meter, max 400 W


4 . Gauss meter

                    Measures magnetic flux upto 20k gauss
Resolution: 1 gauss



5 . Hall probe

                    Available in n-type and p-type mounted on PCB with a holder
