UJT characteristics

Model: UJT-201

Experiment(s):

I-V Characteristics, determination of intrinsic stand of ratio, base to base resistance, value point & peak point voltages

Specifications

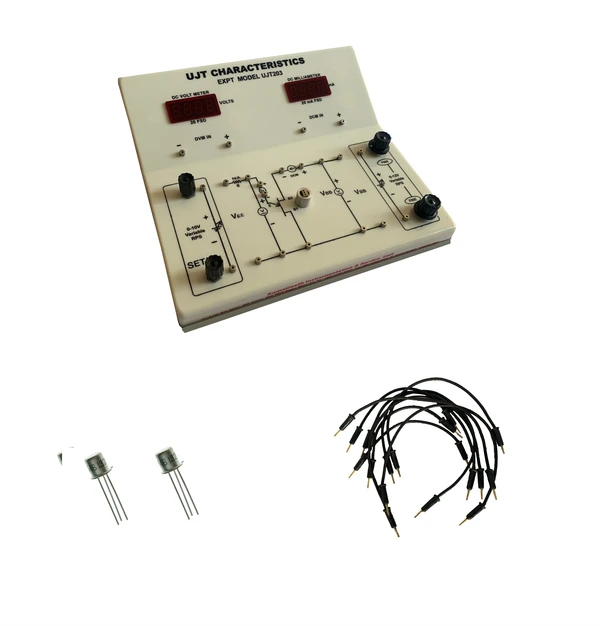

1 . UJT characteristics kit

                    Voltmeter: Digital DC voltmeter
Display: 3½ digit, LED
Range: 20V
Resolution: 0.01 V
Current meter: Digital DC  current meter
Display: 3½ digit, LED
Range: 20 mA
Resolution: 0.01 mA
Components: Internally connected
UJT: External mounting type
Power supply 1: Variable DC power supply
Voltage: 0 - 10 V with coarse and fine adjusts
Power Supply 2: Variable DC power supply
Voltage: 0 - 12 V with coarse and fine adjusts
Connectors: 2 mm Patch Cords
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power Consumption: <30 W
Cabinet: Acrylic body, aluminium bottom


2 . Externally mounting UJT

3 . Set of patch cords
