Reference: Detailed textbook of Engineering physics practicals by S P Basavaraju, Page -121

Transistor characteristics

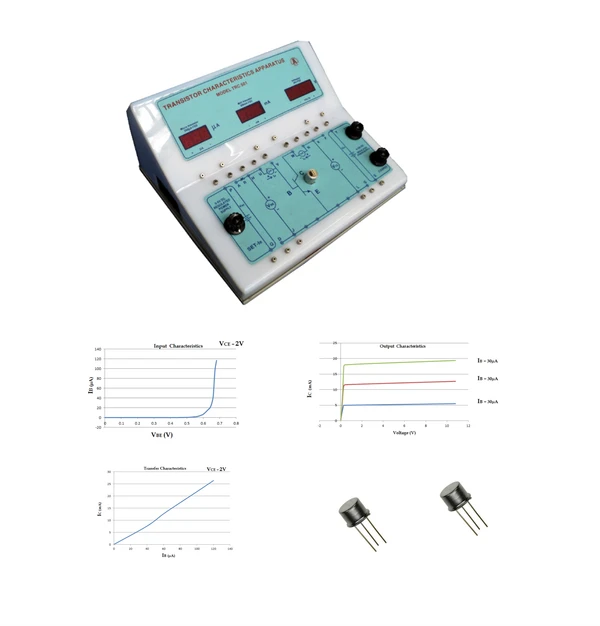

Model: TRC-501

Experiment(s):

Study of input, output & transfer characteristics and calculation of input resistance, output resistance and amplification factor for any given n-p-n transistor

Specifications

1 . Transistor characteristics kit

                    Power supply: 0-10 V DC  variable & regulated
Power supply: 0-5 V DC  variable & regulated
Volt meter: Digital DC 3½ digit
Range: 20 V
Resolution: 0.01 V
Current meter: Digital DC 3½ digit
Range: 200 mA
Resolution: 0.1 mA
Current meter: Digital DC 3½ digit
Range: 200 μA
Resolution: 0.1 μA
Device mounting: External Semi-conductor devices: n-p-n transistor
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power Consumption: <50 W
Cabinet: Acrylic body, aluminium bottom
Connectors:  2 mm - 2 mm brass molded patch cords


2 . Silicon transistor

                    Type: n-p-n
Part number: SL-100
