Opto-coupler characteristics

Model: OC-301

Experiment(s):

Input/output & transfer characteristics of an opto-coupler

Determination of voltage & current transfer ratio

Specifications

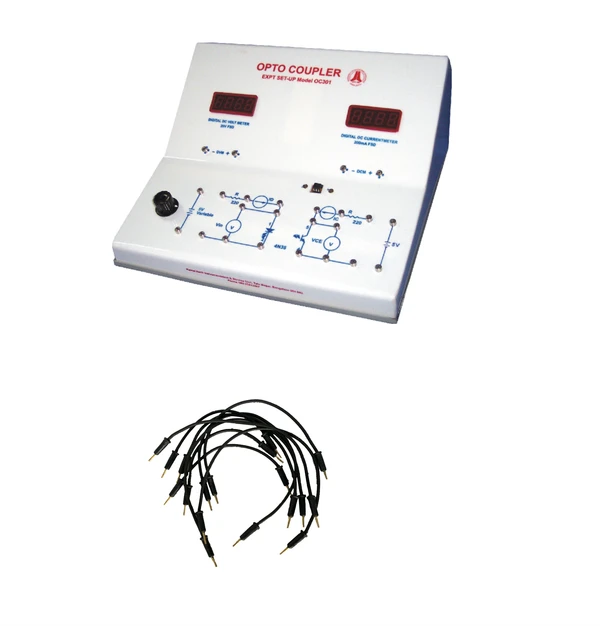

1 . Opto-coupler kit

                    Voltmeter: Digital DC  voltmeter
Display: 3½ digit, LED
Range: 20 V
Resolution: 0.01 V
Current Meter: Digital DC current meter
Display: 3½ digit, LED
Range: 200 mA
Resolution: 0.1 mA
Power Supply 1: Regulated DC  variable power supply
Voltage: 0-5 V
Power Supply 2: Regulated DC fixed power supply
Voltage: 5 V
Opto-Coupler: IC 4N35,  externally mountable
Components: Set of internally  connected in-built components
Rated Input: 220 V/50 Hz  or 110 V/60 Hz
Power consumption: <30 W
Cabinet: Acrylic body, aluminium bottom


2 . Patch cords

                    Set of standard 2 mm Patch cords of different lengths with spare cords
