Reference: Lab Experiments Journal vol-13, No.2, Page-120

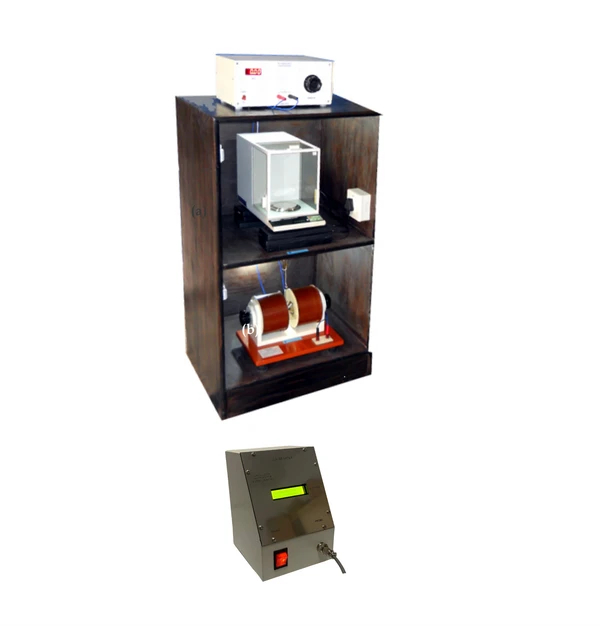

Diamagnetic & Paramagnetic susceptibility

Model: DMS-201

Experiment(s):

Determination of magnetic susceptibility of water and glass

diamagnetic and paramagnetic compounds

Specifications

1 . Digital Gouy balance

                    Range: 200 g
Resolution: 0.0001 g (0.1 mg)
Rated Input: 220 V/50 Hz
Enclosure: sealed from all sides
Pan movement: + Z axis


2 . Electro-Magnet

                    DMS-201:  100 mm diameter magnet with user  adjustable pole gap from 1 mm till 20 mm,
capable of  producing magnetic flux of  upto 20K Gauss at  10 mm pole gap

DMS-201LC:- 50 mm diameter magnet with non adjustable pole gap fixed at 10 mm,
capable of producing magnetic flux of upto 10K Gauss at 10 mm pole gap


3 . Power supply

                    DMS-201:- Heavy duty power supply with variable constant current, provided with digital current meter,
max 400 W

DMS-201LC:- Variable constant current power supply,  provided with digital current  meter, max 60 W
Rated Input: 220 V/50 Hz or 110 V/60 Hz


4 . Gauss meter

                    Range: 0-20K Gauss
Resolution: 0.1K Gauss
Display: LCD


5 . Cabinet

                    Size: 500 x 425 x 1100 mm
Material: PlyWood and acrylic
