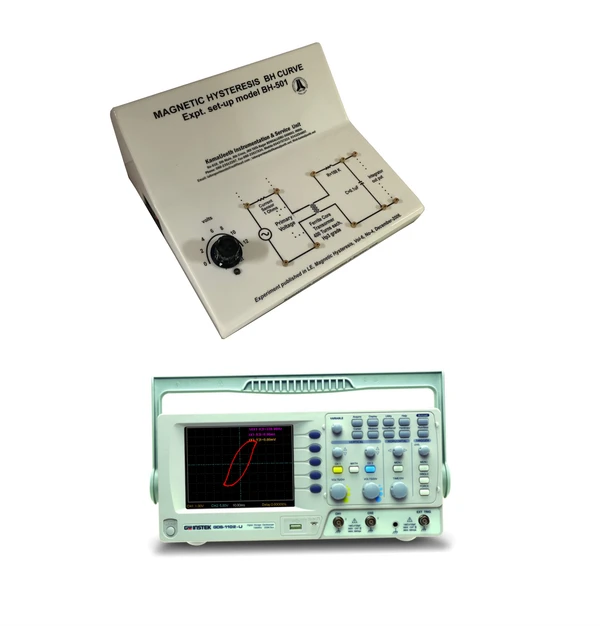

B-H curve apparatus

Model: BH-501

Experiment(s):

Magnetic hysteresis

B-H curve loop tracer

Specifications

1 . Magnetic hysteresis kit

                    Coil: Ferrite core copper coils  with 1:1 primary & secondary windings
Power supply: Built in AC source with voltage selection  from 2 V to 12 V AC
Heating: Oven heating up to 200 °C
Temperature indicator: Digital thermometer
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: < 50 W
Cabinet: Acrylic body, aluminium bottom


2 . Digital Storage Oscilloscope (DSO)

                    Make: GW Instek / HTC / Owon / Hantek / HTC
Bandwidth: 100 MHz
Channels: 2
Sampling rate: 250 million samples/sec
Display: 5.7" / 7 " TFT colour
USB PC interface: Yes
Warranty: 1 year
