Reference: Lab Experiments Journal vol-15, No.4, Page-253

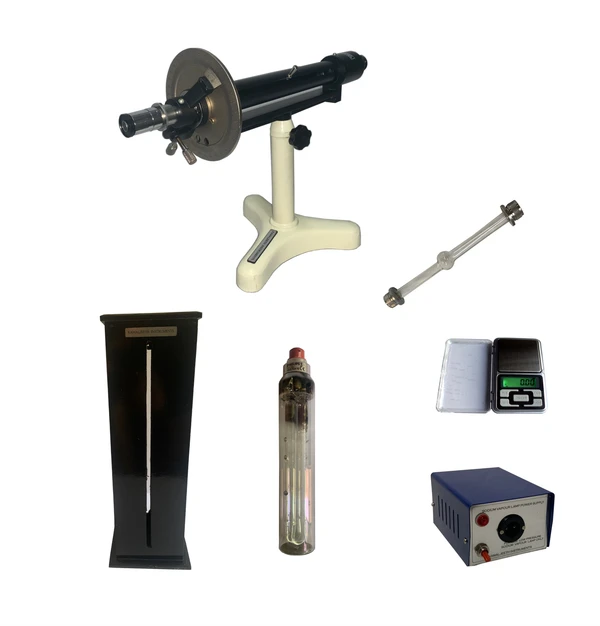

Polarimeter

Model: SR-201

Experiment(s):

Determination of specific rotation of sugar solution

Specifications

1 . Polarimeter & Glass tube

                    Type: Half shade
Base material: Cast iron
Moving components: Brass
Scale: Vernier type graduated to 360°
LC: 0.1°
Rotation: Coarse and fine
Focus: Adjustable at eye piece
Tube slot: Can accommodate tubes up to 220 mm


2 . Sodium vapour lamp set (Optional)

                    Lamp: Philips / Thorne 35 W
Lamp house: Single lamp type with fixed slit openings
Transformer: 35 W, Instant ON type
Rated Input: 220 V/50 Hz or 110 V/60 Hz


3 . Digital balance (Optional)

                    Range: 200 g
Resolution: 0.01 g
Type: Pocket scale
Power: Battery operated
