Digital Voltmeter - Multi range

Model: DVM-Series

Experiment(s):

Specifications

1 . Common Specifications:

                    Input resistance: 10M Ω
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <20 W
Cabinet: Acrylic body, aluminium bottom
Connectors: BTI-15/ 4 mm banana socket
Dimensions: 180 mm x 150 mm x 200 mm

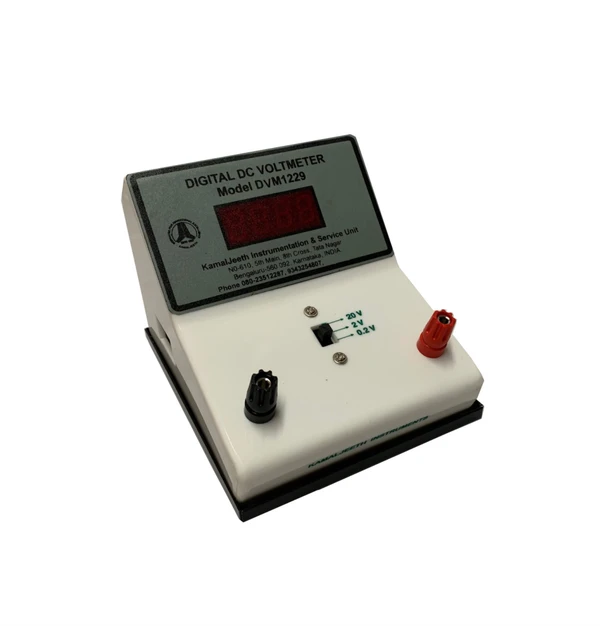

2 . DVM-1229 Multi range DC

                    Range(DC): 0-200mV / 0-2V / 0-20V
Resolution: 0.1mV / 0.001V / 0.01V


3 . DVM-194 For Diode Characteristics Experiment DC

                    Range (DC): 0-200mV / 0-200uV
Resolution: 0.1mV / 0.1uV


4 . ADV-1210 Multi Range AC

                    Range: 0-200mV, 0-2V, 0-20V
Resolution: 0.1mV,  0.001V,  0.01V
Band width: 200 kHz
