Reference: Lab Experiments Journal vol-12, No.1, Page-42

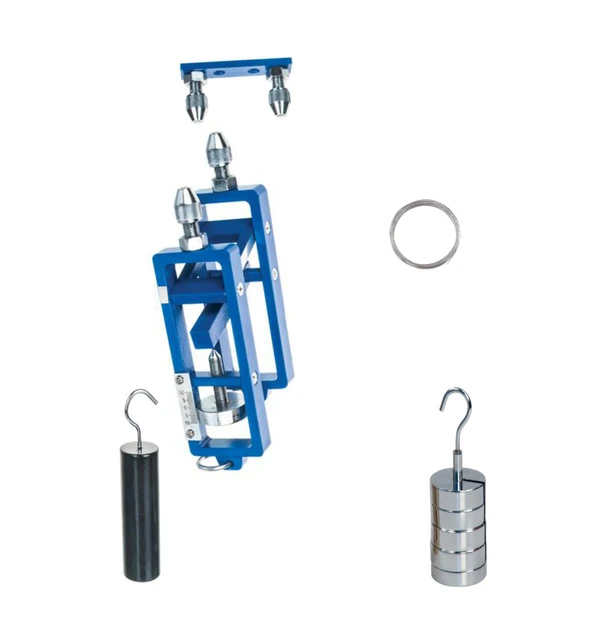

Young's modulus by Searle's method

Model: YMW-201

Experiment(s):

Determination of Young’s modulus of wire by stretching

Specifications

1 . Searle’s Apparatus

                    Frame: Twin cast iron frames
Levelling: Using spirit level
Scale: Micrometer type
Resolution: 0.01 mm
Movement: 60 mm
Mounting: Twin chuck nut type
Upper mounting: To ceiling using a wooden board (wooden board not provided)
Sample wire: Steel wire of diameter 0.5 mm


2 . Weight Set

                    Dead weight: Yes
Known weight: 5 x 500 g slotted weight set
