Reference: Lab Experiments Journal for pre-university

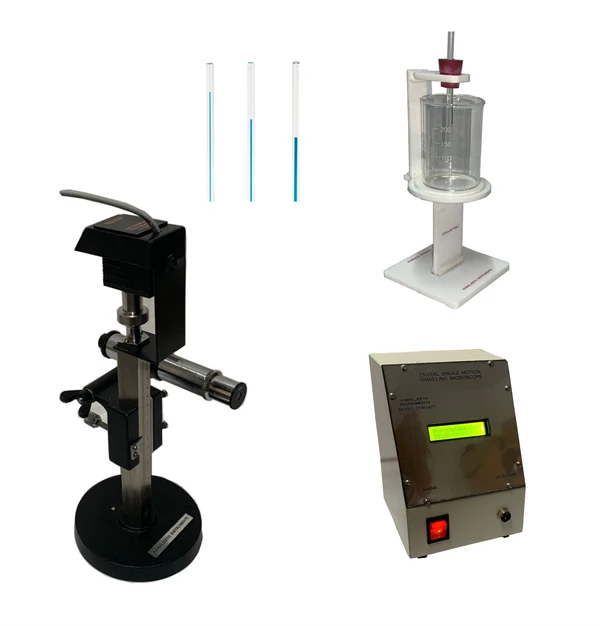

Surface tension by capillary rise method

Model: STC-201

Experiment(s):

Determination of surface tension of liquids

Specifications

1 . Capillary stand and beaker holder

                    Type: Desktop
Material: Acrylic
Reference pointer: Yes
Capillary tube: Changeable (3 different diameter)
Beaker: Max size 250 ml


2 . Digital travelling microscope

                    Number of axis: 1 (Vertical)
Base: Cast iron
Moving parts: Brass
Focus: Adjustable
Free movement: 150 mm
Micrometer movement: 10 mm
Least count: 0.01 mm
Display: LCD
Detector: Resistive type
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <20 W
