Reference: Lab Experiments Journal vol-12, No.2, Page-122

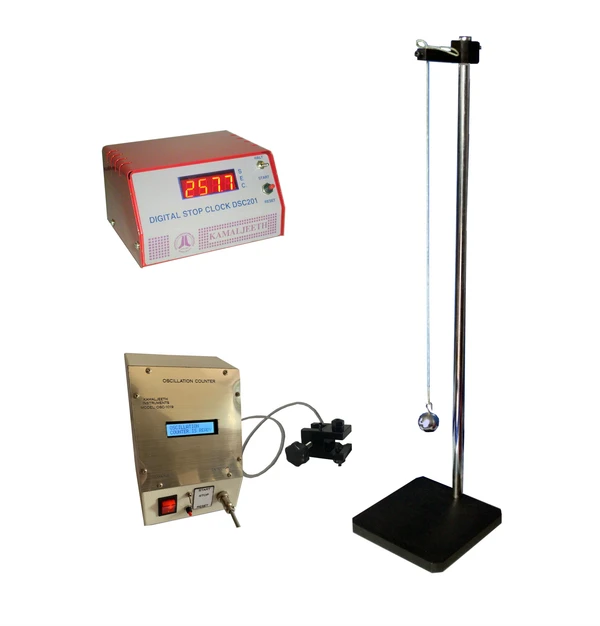

Simple pendulum

Model: SP-201

Experiment(s):

Determination of acceleration due to gravity

Specifications

1 . Simple pendulum stand

                    Base: Heavy mild steel
Support rod: Stainless steel
Bob: Brass (25 mm)


2 . Digital stop clock (Optional)

                    Range: 0-999.9 sec
Resolution: 0.1 sec
Time measuring: Manual  start/stop
Rated Input: 220 V/50 Hz or 110 V/60 Hz


3 . Oscillation counter (Optional)

                    Range: 0-999.999 sec
Resolution: 0.001 sec
Time measuring: Based on input from single start/stop sensor
Reset: Manual Counts number of oscillation and time period for the oscillation
Rated Input: 220 V/50 Hz  or 110 V/60 Hz
