Reference:

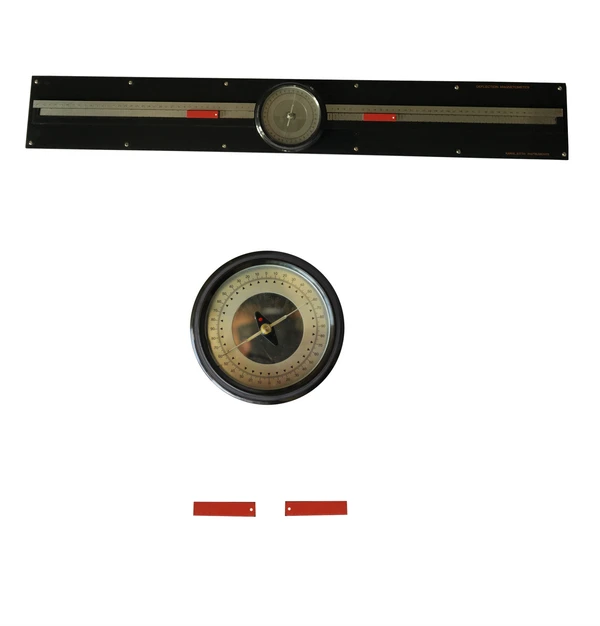

Deflection magnetometer

Model: PS-201

Experiment(s):

Determination of pole strength of a magnet

Dipole moment of the magnet

Specifications

1 . Deflection magnetometer

                    Length: 40 cm on either sides from centre
Material: Acrylic
Track for bar magnet: Yes,
12.5 mm width

2 . Compass

                    Size: 100 mm diameter
Mirror for reduced parallax error
Graduation: 1°

3 . Bar magnet pair

                    Length: 50 mm each
width: 12 mm
Material: AlNiCo
