Reference: Laboratory manual in Physics I-PUC by Sharmista Sahu, 1998, Page -28

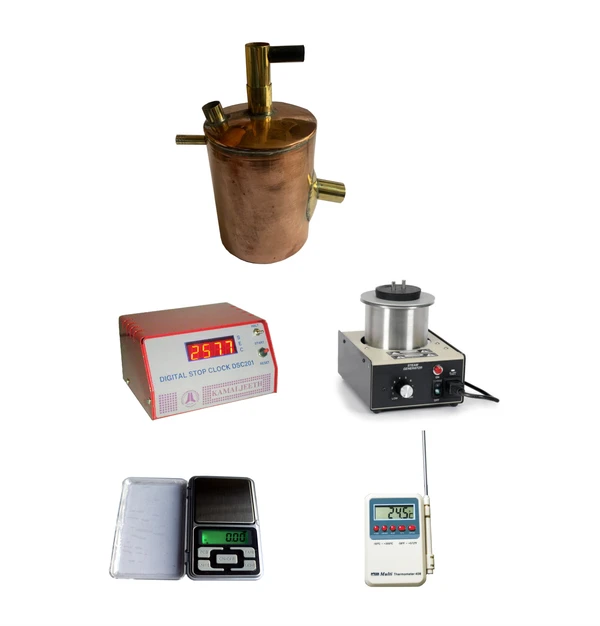

Specific heat of solids

Model: SH-201

Experiment(s):

Determine the specific heat of solids

Specifications

1 . Regnault’s apparatus

                    Copper chamber with steam  inlet and outlet
Provision for thermometer: Yes


2 . Digital stop clock

                    Range: 0-999.9 sec
Resolution: 0.1 sec
Time Measuring: Manual start/stop
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <20 W


3 . Steam generator with heater

                    Capacity: 1.5 L
Output: Approx. 1 L/hr
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power Consumption: <1000 W
Socket: 5 A, 3 Pin mains cord
Rubber tube: 6 mm, 1 m length


4 . Thermometer

                    Type: Digital, Probe type
Range: 300 °C
Resolution: 0.1 °C


5 . Digital balance (Optional):

                    Pocket type
Power: Battery operated
Max Weight: 200 g
Resolution: 0.01 g
