Reference: Lab Experiments Journal vol-14, No.3, Page-217

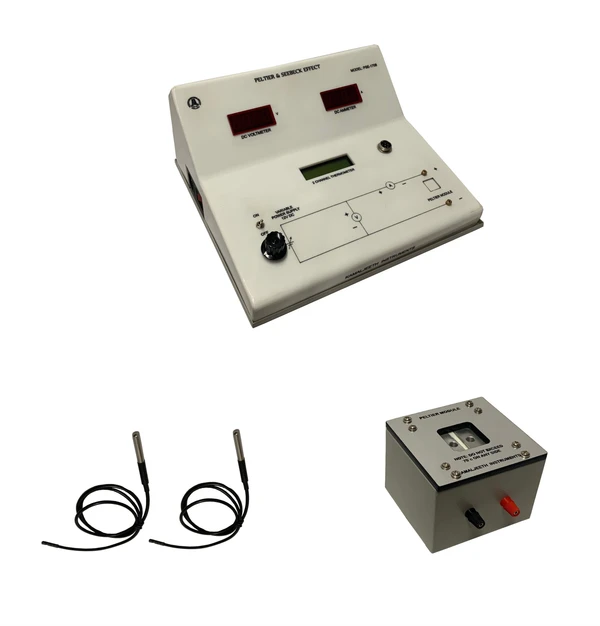

Peltier & Seebeck effect

Model: PSE-1708

Experiment(s):

Study of Peltier effect and Seebeck effect

Specifications

1 . Peltier & Seebeck effect kit

                    DC ammeter: 0-20 A
Resolution: 0.01 A
Voltmeter: 0-20 V
Resolution: 0.01 V
Power supply: Variable 0 -12 V,  Regulated output
Thermometer: 2 channel
0-150 °C,
Resolution: 1 °C
Socket for Digital Probe thermocouple
Rated Input: 220 V/50 Hz or 110 V/60 Hz


2 . Peltier module

                    Module maximum power: 25 W
Heat-sink: 2 nos (on hot and cold sides)
Max temperature difference: 40 °C
Temperature sensor: 2 nos
mounting on heat sinks


3 . Thermocouple

                    Type: Probe type thermocouple
