Reference:

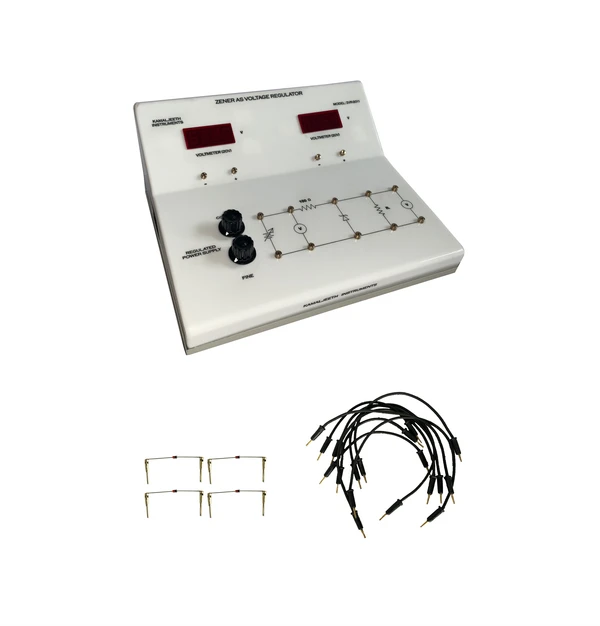

Zener as voltage regulator

Model: ZVR-2011

Experiment(s):

Understand the working of zener diode and use it as voltage regulator

Specifications

1 . Zener diode as voltage regulator kit

                    Voltmeters: Digital DC
voltmeter (2 nos)
Display: 3½ digit, LED
Range: 20 V
Resolution: 0.01 V
Power Supply: Regulated variable voltage 0-20V DC with coarse and fine controls
Components: Built in fixed load resistance


2 . Zener diodes

                    Set of 4 different breakdown  voltages
Rated Input: 220 V/50 Hz  or 110 V/60 Hz
Power Consumption: <30 W
Cabinet: Acrylic body,  aluminium bottom


3 . Set of diodes

                    Breakdown voltage 3.6V, 5.1V,  9.1V and 12V


4 . Patch cords

                    Set of standard 2 mm patch cords of different lengths with spare cords
