Reference: Lab Experiments Journal vol-13, No.3, Page-213

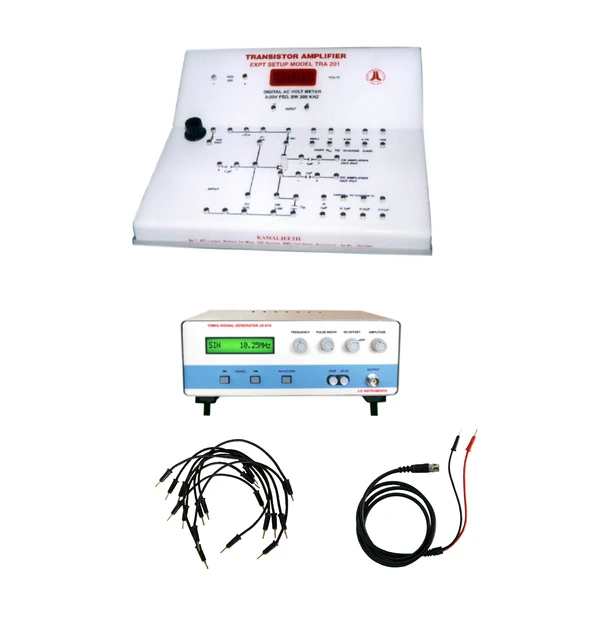

Transistor amplifier

Model: TRA-201

Experiment(s):

Realisation of transistor amplifier in CE configuration

Realisation of transistor amplifier in CC configuration

Specifications

1 . Transistor amplifier kit

                    Voltmeter: Digital DC  voltmeter
Display: 3½ digit, LED
Range: 20 V
Resolution: 0.1 V
Current meter: Digital DC current meter
Display: 3½ digit, LED
Range: 200 mA
Resolution: 0.1 mA
Components: Set of known value resistors and set of two unknown resistors
Power supply: Selectable voltage 5V DC or 12V DC
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <30 W
Cabinet: Acrylic body, aluminium bottom


2 . Signal generator

                    Frequency: 1 Hz to 1 MHz
Display: Frequency & Waveform
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power Consumption: <30 W
Amplitude: 0 to 20 V variable
Waveforms: Sine, square and triangular


3 . Patch cords

                    Set of standard 2 mm patch cords of different lengths with spare cords
