Reference:

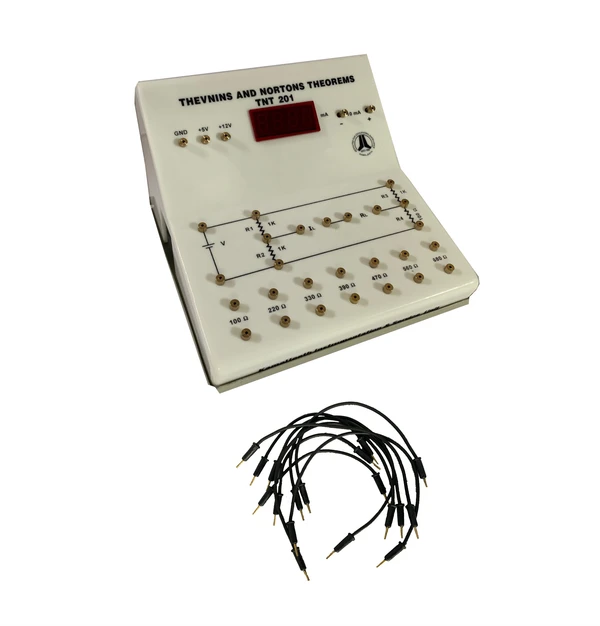

Thevnin's & Norton's Theorem

Model: TNT-201

Experiment(s):

Verification of Thevnin’s & Norton’s theorem

Specifications

1 . Thevnin’s & Norton’s theorem kit

                    Current meter: Digital DC current meter
Display: 3½ digit, LED
Range: 20 mA
Resolution: 0.01 mA
Components: Set of known  value resistors for load  resistance
Power supply: Selectable voltage +5V DC or +12V DC
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <30 W
Cabinet: Acrylic body, aluminium bottom


2 . Patch cords

                    Set of standard 2 mm patch cords of different lengths with spare cords
