Reference:

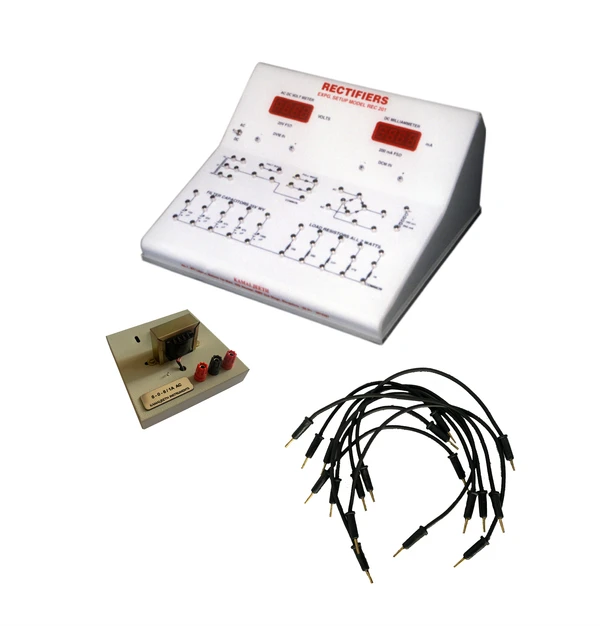

Rectifiers

Model: REC-201

Experiment(s):

Realization of half wave, full wave and bridge rectifier and its output with filter(s)

Specifications

1 . Voltmeter

                    Digital AC/DC  voltmeter
Display: 3½ digit, LED
Range: 20 V
Resolution: 0.1 V
Current meter: Digital DC  current meter
Display: 3½ digit, LED
Range: 200 mA
Resolution: 0.1 mA
Circuits of half wave, full wave and bridge rectifier
Components: Set of known  value load resistors, set of filter capacitors and two unknown resistors
Power supply: Selectable voltage  5 V (DC) or 12 V (DC)
Rated Input: 220 V/50 Hz  or 110 V/60 Hz
Power consumption: <30 W
Cabinet: Acrylic body, aluminium bottom


2 . Patch cords

                    Set of standard 2 mm patch cords of different lengths with spare cords


3 . Transformer

                    External Output: 6-0-6/1A
