FET amplifier

Model: FET-202

Experiment(s):

Common Source (CS) amplifier frequency response

Specifications

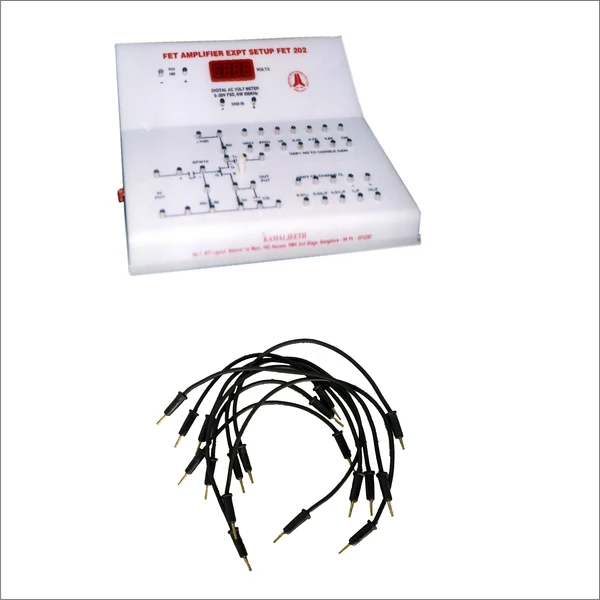

1 . FET amplifier kit

                    Input: Built-in AC power  source
Metre: Digital wide band AC voltmeter
Display: Digital DC 3½ digit,  LED
Range: 20 V
Resolution: 0.1 V
FET: Externally mountable
Variable components:
Capacitors (5 nos)
Resistors (7 nos)
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Socket: 3 pin
Power consumption: <50 W
Cabinet: Acrylic body, aluminium bottom


2 . Patch cords

                    Set of standard 2 mm patch cords of different lengths with spare cords


Download Catalog
