Reference:

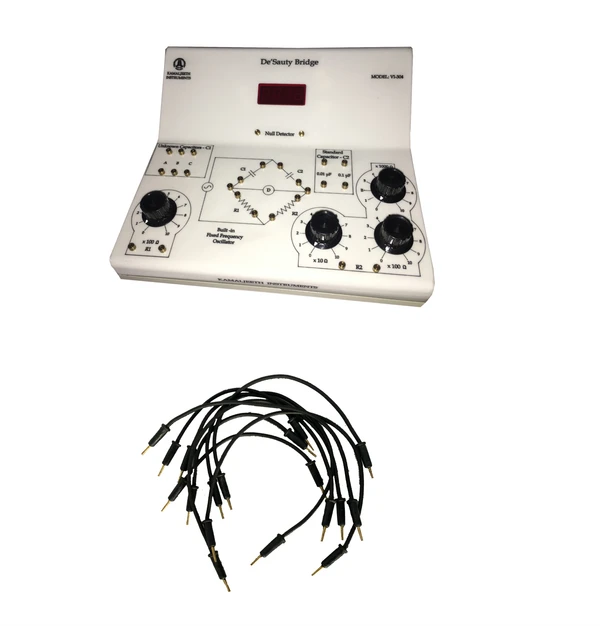

De'sauthy bridge

Model: VI-304

Experiment(s):

Determination of unknown capacitance

Specifications

1 . De’Sauthy bridge kit

                    Unknown capacitor: 3
Known capacitor: 2
Variable resistance set: 2
10 Ω to 10 KΩ
Range: 100 Ω to 1 KΩ

Built-in fixed frequency oscillator
Range: Fixed @ 1 KHz
Waveform: Sine
Display: None
Amplitude: Fixed

Built-in digital Galvanometer/ Null detector
Range: -1999 to 0 to 1999
Input: 2 mm connector
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <20 W
Cabinet: Metal


2 . Patch cords

                    Set of standard 2 mm patch cords of different lengths with spare cords
