Dielectric constant of a capacitor

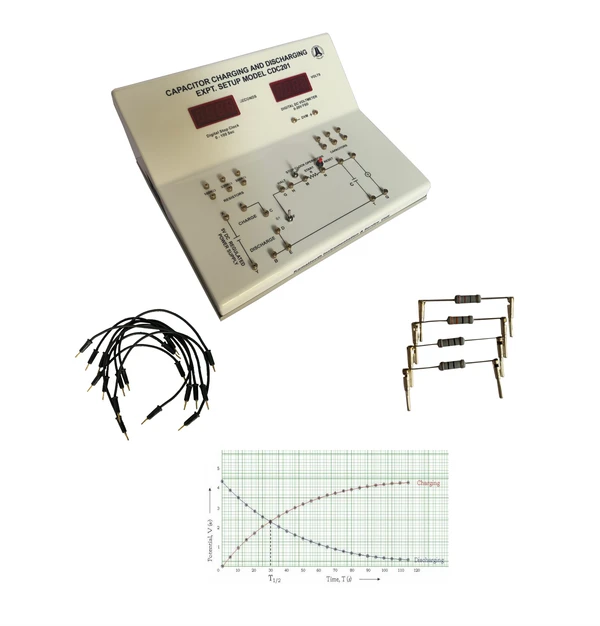

Model: CDC-201

Experiment(s):

Determination of dielectric constant of a capacitor by the method of charging and discharging

Specifications

1 . Capacitor charging & discharging kit

                    Power supply: 0-5 V (DC) variable & regulated
Volt meter: Digital DC 3½ digit
Range: 20 V
Resolution: 0.01 V
Timer: Digital DC 3½ digit
Range: 999 sec
Resolution: 1 sec
Capacitors: selectable (3 values)
Dimensions: Provided
Resistors: selectable (3 values)
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <50 W
Cabinet: Acrylic body, aluminium bottom


2 . External components

                    Set of Resistors and Capacitors mountable externally


3 . Patch cords

                    Set of standard 2 mm patch cords of different lengths with spare cords
